What Is the Difference Between LS3 and L92 Heads? Choosing the Right Upgrade for Your LS Build

Key Takeaways:

• LS3 and L92 heads share a rectangular-port design but differ in valve specs, and spring rates, affecting rpm capability.
• LS3 heads offer higher factory compression and rpm stability, while L92 heads provide a cost-effective foundation for upgrades, especially with CNC porting and spring enhancements.
• Both head types benefit significantly from professional CNC porting and tailored component selection to maximize performance for street, track, or boosted applications.

Both LS3 and L92 heads share the same rectangular-port foundation, yet specific differences in valve specs, and spring rates create distinct performance characteristics. While LS3 heads deliver higher compression and RPM stability from the factory, L92 heads offer budget-conscious builders a solid platform for upgrades. Explore LS CNC Cylinder Heads from Golen Engine Service to maximize either head’s potential.

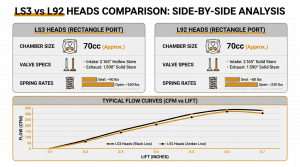

LS3 vs L92 Head Design, Flow, and Performance

Understanding how LS3 heads compare to L92 heads in terms of flow and performance can mean the difference between a good street build and one that truly stands out at car meets. While these rectangular-port designs share fundamental architecture, their chamber volumes, valve hardware, and spring packages create distinct advantages that directly impact your build’s power delivery and rpm capability.

Port Design and Airflow Characteristics

LS3 and L92 heads use identical rectangular intake ports with impressive airflow potential straight from GM. Stock castings typically move high 200s to low 300s cfm by 0.600″ lift, with LS3 heads measuring around 297 cfm. Golen’s 5-axis CNC porting transforms these numbers, pushing airflow well into the 320+ range for serious power gains.

Combustion Chamber Volume and Compression

Here’s where the real performance difference emerges. LS3 chambers measure around 68 cc while L92 chambers run closer to 70 cc, giving LS3 builds a compression advantage that translates to 4 to 7 hp on pump gas. For a daily-driven Camaro, this compression bump delivers crisper throttle response and better power throughout the rev range.

Valve Sizes and Spring Packages

LS3 heads arrive with 2.165″ intake valves and robust beehive springs engineered for higher rpm operation. L92 castings often feature comparable valve sizes but lighter spring packages that need upgrades for aggressive cam profiles or sustained operation above 6,500 rpm. Dyno testing confirms this spring difference becomes critical for weekend track sessions or when running performance-oriented builds.

Fitment, Components, and Build Scenarios

Which is better for my LS engine build: LS3 heads or L92 heads? The answer hinges on three key factors: component compatibility and fitment requirements, your specific performance goals and RPM targets, and whether you’re building naturally aspirated or boosted. Both heads share identical mounting patterns, but their strengths emerge in different build scenarios.

Intake Manifold and Rocker Compatibility

Both LS3 and L92 heads use the same rectangular-port intake bolt pattern and 1.7-ratio offset intake rockers. Car-style intakes like the FAST 102mm intake manifold work perfectly under Camaro hoods, while truck intakes are taller but deliver better low-end torque. LSX cylinder heads from GM maintain this universal fitment across all rectangular-port applications.

Matching Heads to Performance Goals

For a daily-driven Camaro targeting 6,500 rpm capability, LS3 heads provide the right combination of compression and spring rates straight from the factory. L92 heads shine when paired with upgraded springs, a performance cam, and professional CNC work to support higher-displacement builds or aggressive cam profiles.

Naturally Aspirated vs Boosted Applications

LS3’s smaller chambers help naturally aspirated 6.2L builds achieve better compression ratios for pump gas. For boosted applications, either head works well, but L92 provides cost-effective performance when investing in proper spring upgrades and machining. Big-inch LS engines benefit from L92’s budget-friendly foundation for reliable, high-power LSX crate engine combinations.

Quick Answers: LS3 and L92 Head FAQ

LS enthusiasts frequently ask about chamber volumes, fitment compatibility, and upgrade requirements when choosing between these heads. Here are direct answers to guide your decision.

Do LS3 and L92 heads use the same intake bolt pattern for Camaro swaps?

Yes, either casting shares the same rectangular-port intake bolt pattern and uses identical 1.7-ratio offset intake rockers. The car intakes from LS3 applications work interchangeably, making swaps straightforward for fifth-gen Camaros and similar rectangle-port configurations.

How does the chamber volume difference affect compression on a 6.2L build?

Chamber volumes commonly measure around 70cc for both castings, though LS3 heads sometimes run slightly smaller. Hot Rod Magazine’s dyno testing demonstrates that small volume differences create typically 4 to 7 horsepower changes on naturally aspirated builds where every compression point matters for pump gas performance.

Are stock L92 springs adequate for 0.600+ lift cams and track use?

Stock L92 springs need upgrading for sustained high-rpm track use with aggressive cams. Upgraded valve springs designed for 0.600+ lift and 6500+ rpm operation provide better valve control and reliability than factory L92 hardware.

What are the main combustion chamber design differences between these heads?

LS3 and L92 heads use similar heart-shaped combustion chambers with comparable quench areas. The primary difference lies in chamber volume variations between individual castings rather than fundamental shape changes, with most measuring close to 70cc regardless of application.

Can I upgrade either head with CNC porting for more power?

Either casting benefits significantly from professional CNC porting work. Precision machining can optimize airflow characteristics while maintaining reliability for naturally aspirated or boosted applications, regardless of which foundation you start with.

Choose With Confidence

LS3 heads deliver measurable compression gains and better rpm stability in stock configuration. Meanwhile, L92 heads offer excellent value when paired with spring upgrades and CNC porting.

Both respond well to professional machining. Your LS3 vs L92 heads conclusion depends on build goals and budget.

Transform your engine’s potential with precision-engineered solutions. Contact Golen Engine Service for Golen Engine Service LS CNC Cylinder Heads featuring 5-axis porting that maximizes airflow for naturally aspirated or boosted applications. Our team provides tailored guidance on chamber volumes, spring packages, and 4-bolt or 6-bolt configurations to match your short-block, cam selection, and fuel requirements. Reach out for a personalized build plan and dyno tuning that transforms your vision into reliable horsepower.
