LT4 Engine Specs, Performance, and Swap Considerations Explained

Key Takeaways:

• The LT4 engine delivers impressive factory supercharged performance but requires careful planning for fuel, cooling, and electronics integration during swaps.
• Custom LSx crate engines can match or exceed LT4 power levels with less complexity, lower costs, and greater serviceability, making them a strong alternative for street builds.
• Choosing between LT4 and LSx depends on your priorities: factory drivability and instant torque versus simplicity, flexibility, and long-term maintenance ease.

The factory LT4 delivers 650 horsepower and 650 lb-ft straight from the factory with supercharged reliability. Smart swap planning means understanding the fuel system complexity, heat management demands, and electronics integration before you commit. Whether you choose an LT4 build or explore custom LSx alternatives, Golen Engine Service builds engines tailored to your street performance goals.

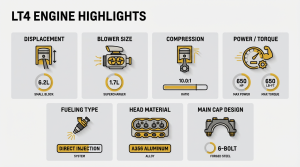

LT4 Engine Specs and Real-World Performance

Understanding LT4 engine specs starts with recognizing GM’s approach to building a streetable supercharged powerplant. This 6.2L Gen V small-block combines forced induction hardware with robust internal components, creating a foundation that delivers both instant torque and long-term reliability for enthusiasts seeking factory-backed performance.

• Supercharged foundation: 1.7L Eaton R1740 TVS supercharger spinning up to 20,000 rpm delivers over 9 psi of boost through an integrated charge cooler, creating instant torque from idle.
• Forged rotating assembly: Forged steel crankshaft, forged connecting rods, and performance pistons with oil-spray cooling jets handle the stress of forced induction while maintaining smooth street manners.
• Six-bolt main construction: The block uses six-bolt main bearing caps and cross-bolted construction, providing the foundation strength needed for output upgrades and sustained high-rpm operation.
• Optimized cylinder heads: Rotocast A356-T6 aluminum heads with enhanced airflow characteristics and robust valve train components support the factory’s 650 hp and 650 lb-ft output.
• Direct injection fueling: A high-pressure fuel system with dual injectors per cylinder enables precise fuel delivery and knock resistance, though it adds complexity compared to traditional port injection setups.
• Broad torque delivery: The supercharged setup delivers substantial torque from 2,000 rpm through redline, making it ideal for street driving where you want instant response. High-rpm naturally aspirated engines often sacrifice low-end grunt for peak horsepower.
• Substantial upgrade headroom: With appropriate fueling, calibration, and heat management, pulley swaps, camshaft upgrades, and exhaust modifications routinely add 100+ horsepower while maintaining street reliability.

Custom builders can stroke the displacement to 416 cubic inches and optimize the combination for specific applications, pushing output well beyond 1,000 horsepower with fuel system and cooling upgrades. The LT4’s real strength lies in delivering usable performance across the entire rpm range, not just at redline.

​

LT4 vs. LSx for Street Builds: Cost, Complexity, and Headroom

When planning your next build, the LT4 vs LSx choice shapes your entire project timeline, budget, and long-term ownership experience. Each approach serves different build goals: factory-smooth power delivery with that supercharged punch, or maximum flexibility with proven simplicity that keeps you in the driver’s seat.

Fuel System and Electronics Complexity

The LT4’s direct injection system requires both low-pressure (72 PSI) and high-pressure (2,000+ PSI) fuel pumps, plus CAN integration for proper operation. LSx engines use straightforward port injection with massive aftermarket support, making tuning and service uncomplicated. LT4 reliability demands specialized knowledge and 10-15% higher operating costs compared to traditional builds.

Packaging and Heat Management

The LT4’s supercharger adds significant height and generates substantial under-hood heat, requiring careful intercooler placement and auxiliary cooling systems. LSx engines offer flexible packaging for both naturally aspirated and boosted setups, with streamlined thermal management. The Eaton R1740 supercharger creates packaging challenges that LSx turbo or supercharger kits can often avoid.

Power Goals and Value Proposition

For 600-800+ horsepower targets, custom LSx crate engines deliver comparable power with straightforward fueling and serviceability at 20-30% lower total project costs. The LT4 excels when you want factory-like drivability with instant torque delivery. However, direct injection limitations can require additional port injection for maximum power, adding expense that LSx builds avoid from the start. Custom LSx crate engines from experienced builders eliminate these complications while delivering proven performance.

LT4 Swap Planning: Fuel, Cooling, Electronics, and Fitment

Planning an LT4 engine swap means handling modern challenges that can overwhelm even experienced builders. Understanding fuel system demands, heat management, and fitment issues upfront saves time and prevents costly mistakes that derail projects.

What fuel system components does an LT4 swap need?

The LT4 demands a two-stage fuel system: a low-pressure supply pump delivering fuel system requirements of 72 PSI at 45 GPH, plus a high-pressure mechanical pump mounted on the engine. You’ll also need a compatible fuel controller, PWM-controlled supply pump, and proper -6 AN fuel lines with 10mm sensor fittings for pressure monitoring.

How do you handle the electronics and wiring complexity?

Many builders underestimate the electronic demands of an LT4 swap. You’ll need a complete engine management system, including ECM, CAN bus integration, and professional wiring solutions with a fuse block and GM diagnostic connector. The integration goes far beyond simple ignition and fuel connections, making professional harnesses worth the investment for reliable street use.

What cooling challenges come with supercharged LT4 installations?

The supercharger generates serious heat that demands an auxiliary heat exchanger, dedicated coolant pump, and upgraded radiator capacity. Underhood temperatures climb quickly during street driving, so plan for proper airflow extraction and intercooler efficiency. Electric cooling fans and strategic heat shielding around sensitive components become necessities, not options.

What fitment issues should you expect during installation?

Here’s what matters most: LT4 height with the supercharger often needs hood modifications or cowl clearance. Oil pan selection affects subframe clearance, while accessory drive alignment varies by chassis. Check official installation guides for specific transmission compatibility and mounting specifications before starting your project.

Are there emissions considerations for street-driven LT4 swaps?

Modern LT4 engines include extensive emissions equipment that may not transfer cleanly to older chassis. This creates registration challenges in many areas. Verify local requirements for catalytic converters, evaporative emissions, and OBD-II compliance. States like California have particularly strict standards that could complicate street legality.

While LT4 swaps offer impressive performance, many builders find that custom LSx solutions provide similar power with less complexity and better serviceability for daily-driven applications.

Choose the Right Path and Build With Confidence

The LT4 delivers factory-refined boost with instant torque, but careful planning for the fuel system, cooling, and electronics is essential to success. Getting these systems right from the start makes the difference between a smooth build and costly headaches.

Alternatively, for 550–800+ hp with simpler serviceability, LSx crate engines offer proven reliability and widespread aftermarket support. Custom builds can match LT4 power while keeping maintenance and tuning straightforward, whether you’re building a Corvette, Camaro, or any other platform.

Whatever path fits your vision, we’re here to help you build with confidence. Explore Golen Engine Service’s customizable LSx crate engines and request a personalized quote for your build today.
