6.0 Chevy Engine Swap: What You Need to Know for Your Next Build

Key Takeaways:

• The 6.0 Chevy LS engine is a versatile and affordable platform, offering robust architecture and extensive aftermarket support for both street and performance builds.
• Proven upgrade paths—including cam, head, and bottom-end enhancements—can reliably deliver 450–800+ horsepower, especially when validated with professional dyno tuning.
• Successful swaps and builds depend on careful component selection, compatibility planning, and expert assembly, making LSx crate engines from Golen Engine Service a turnkey solution for enthusiasts.

The 6.0 Chevy engine delivers 500+ hp potential without breaking the bank. This proven LS platform combines robust architecture with endless aftermarket support, making big power builds both achievable and reliable. Explore LSx crate engines from Golen Engine Service for turnkey performance solutions.

6.0 LS Architecture And Specs: Why Builders Pick It

The 6.0 LS engine specs reveal why this platform dominates performance builds. With proven geometry, multiple variants, and strong aftermarket support, the 6.0 delivers a foundation that scales from mild street builds to high-performance applications.

Bulletproof Bottom End Design

The 4.000-inch bore and 3.622-inch stroke create 364 cubic inches of displacement with an excellent rod-to-stroke ratio. Six-bolt main bearing caps anchor the crankshaft with exceptional strength, making this block capable of handling high rpm and forced induction pressure when properly prepared.

Popular 6.0 Variants And Applications

This robust foundation comes in several proven variants. Iron block LQ4 and LQ9 engines from trucks handle supercharged applications beautifully, while aluminum L76 versions save weight in passenger cars. The LY6 and L96 truck variants offer cast-iron durability with updated internals, making them favorites for custom LSx builds.

Stock Power And Realistic Upgrades

Factory outputs range from mid-300 to low-400 horsepower, depending on heads and intake configuration. With a performance cam, valve springs, and proper tuning, naturally aspirated builds consistently deliver 450 to 500+ horsepower on pump gas. They maintain excellent street manners, too.

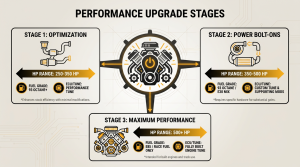

Upgrade Paths That Deliver Reliable Power

Building from a solid 6.0 foundation, proven component combinations can transform your engine from stock to serious without sacrificing street manners. The key is matching each upgrade to your power goals and driving style, then validating everything on the dyno. Our LSx crate engines incorporate these same upgrade principles.

• Start with cam and valvetrain upgrades for immediate gains. A hydraulic roller cam in the 216 to 224 degrees duration range sharpens torque delivery from 2,500 to 6,500 rpm while maintaining vacuum for power brakes and smooth idle quality.
• Choose heads based on your specific application. Cathedral-port 317 heads work well for boosted applications and respond to cleanup work, while LS3-style rectangular-port heads deliver superior high-rpm flow for naturally aspirated builds when paired with the right intake manifold.
• Match fueling to your power target as you step up performance. Pair head upgrades with adequate injectors, a 92 to 102 mm throttle body, and proper MAF or speed-density tuning. Testing shows that factory LS heads perform differently under boost versus naturally aspirated conditions.
• Build the bottom end right for high horsepower when pushing beyond naturally aspirated limits. When targeting 600 to 800+ hp with boost, specify forged pistons, upgraded rods, precise ring gaps, and ARP fasteners. Our Street/Strip short blocks include these components with proper machine work.
• Verify everything on the dyno to separate reliable builds from guesswork. Professional dyno tuning confirms stable air-fuel ratios, optimal timing, and repeatable results. This step separates reliable street engines from weekend projects that never quite run right.
• Consider ported versus unported options as your final performance step. CNC porting can unlock significant flow gains, but unported heads often provide the best value for street-driven 6.0 Chevy engine upgrades.

6.0 Chevy Engine Swaps And Common Questions

Planning a 6.0 Chevy engine swap or build raises practical questions about compatibility, performance potential, and reliability. Here’s what builders need to know to make informed decisions about their projects.

Is the 6.0 Chevy engine a good candidate for swaps in classic cars and trucks?

Yes, the 6.0 LS makes an excellent swap candidate because of its compact packaging, proven reliability, and extensive aftermarket support. Iron blocks like the LQ4 and LQ9 offer durability at reasonable costs, while modern engine management delivers smooth operation and improved fuel economy over older powerplants.

What makes the 6.0 Chevy engine swap so popular for performance builds?

The 6.0 Chevy engine swap’s popularity stems from its combination of affordable entry costs and strong performance potential. Used cores from trucks provide solid foundations, while the 4.000-inch bore accepts performance pistons easily. Wide parts availability and proven upgrade paths make it accessible for various budgets and power goals.

How can you upgrade a 6.0 Chevy engine for more horsepower without sacrificing street reliability?

Focus on naturally aspirated combinations: hydraulic roller cams in the 216-224 degree range, upgraded valve springs, and professional tuning. This approach delivers 450-500 hp while maintaining vacuum for accessories and smooth idle characteristics. Professional builds include proper component matching and dyno validation for consistent, reliable performance.

What are the main differences between iron and aluminum 6.0 blocks for swaps?

Iron blocks like LQ4/LQ9 weigh about 100 pounds more but handle heat and boost better than aluminum variants. Aluminum L76 and LY6 blocks save weight for better handling but cost more and require careful tuning. Consider reluctor wheel differences (24x vs 58x) when selecting engine management, as this affects compatibility with modern systems.

What hardware considerations are important for 6.0 LS swaps?

Plan for swap-specific components: motor mounts, oil pans for ground clearance, accessory drive systems, and complete wiring harnesses. Fuel system upgrades and exhaust routing require attention early in planning. These details determine installation success and long-term reliability, so factor them into your budget and timeline from the start.

Build It Your Way With LSx Crate Power

The 6.0 Chevy engine combines proven architecture with strong aftermarket support for reliable power builds. Smart component selection and dyno validation transform this affordable platform into streetable performance.

Whether you’re planning a naturally aspirated street build or a boosted track setup, matching components to your intended use delivers better results than chasing maximum horsepower figures. Professional assembly and tuning deliver consistent results that last.

Ready to eliminate the variables and get straight to proven power? Explore Golen Engine Service’s LSx crate engines tailored for street, track, and off-road builds. Each engine features fully custom American-made components, in-house machining, and a comprehensive dyno break-in that puts reliable horsepower in your hands from day one.
